Superior Mag-Drive Submersible Utility Pump – 810 Gph, Energy-Efficient Design

Description

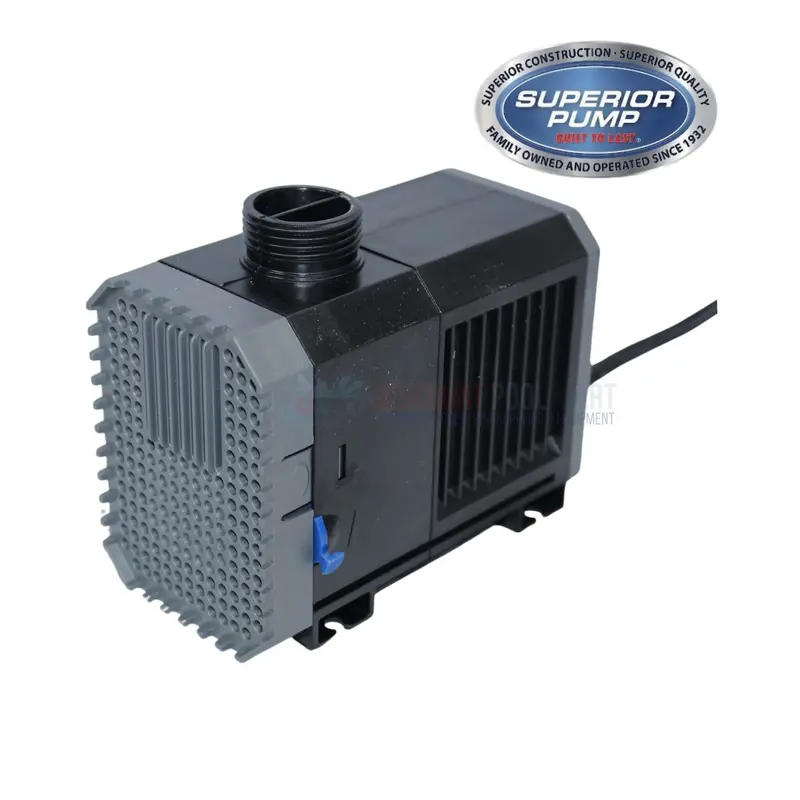

​The Superior Pump 90091 Mag Drive Utility Submersible Pump is an energy-efficient solution designed for versatile water transfer applications. Its continuous-duty 55-watt motor and thermoplastic construction ensure durability and reliable performance. Fully submersible, it pumps up to 810 gallons per hour, with a maximum head of 9.8 feet. The pump features a built-in adjustable control valve for precise flow regulation and includes a 3/4-inch garden hose adapter. Its compact, lightweight design, coupled with a 25-foot power cord, enhances portability for both indoor and outdoor use.

Highlights

• Energy-Efficient Performance: 55-watt continuous-duty motor ensures reliable operation with low power consumption.

• High Flow Rate: Pumps up to 810 gallons per hour, with a maximum head of 9.8 feet for effective water transfer.

• Durable & Submersible: Constructed from thermoplastic materials for long-lasting, fully submersible operation.

• Adjustable Flow Control: Built-in control valve allows for precise regulation of water flow.

• Convenient & Portable: Compact design with a 25-foot power cord and includes a 3/4-inch garden hose adapter for versatile use.

Features

•  Energy efficient magnetic drive pump
• Continuous duty 55 watt motor
• Thermoplastic construction
• Fully submersible
• Pumps up to 810 gallons per hour
• Thermoplastic impeller
• Built-in adjustable control valve to control flow
• 3/4” Garden hose adapter included
• Screen removes easily for cleaning
• Acceptable for indoor or outdoor use
• Compact, lightweight design is easily portable
• 25’ power cord

Specifications

• Performance: 810 GPH
• Horsepower: 55 Watt

• Voltage: 120

• Amps: .45

• Hertz: 60Hz

• Phase: Single

• Duty Rating: Continuous

• Discharge Size: 1″ NPT & 3/4″ Garden Hose Thread

• Cord Length: 25′

• Cord Type: SJTW, UL Listed, 3-wire, 18 Gauge

• Construction: Reinforced Thermoplastic

• Impeller Material: Reinforced Thermoplastic

• Impeller Type: Non-clogging

• Solids Handling: 1/8″ spherical

• Liquid Temp Range: 32°- 120° F

• Operation: Non-automatic

• Max Flow Rate: 13.5 Gallons per minute

• Maximum Head: 9.8 Feet

• Maximum Pressure: 4.2 psi

• Weight: 3.8 lbs
