Description

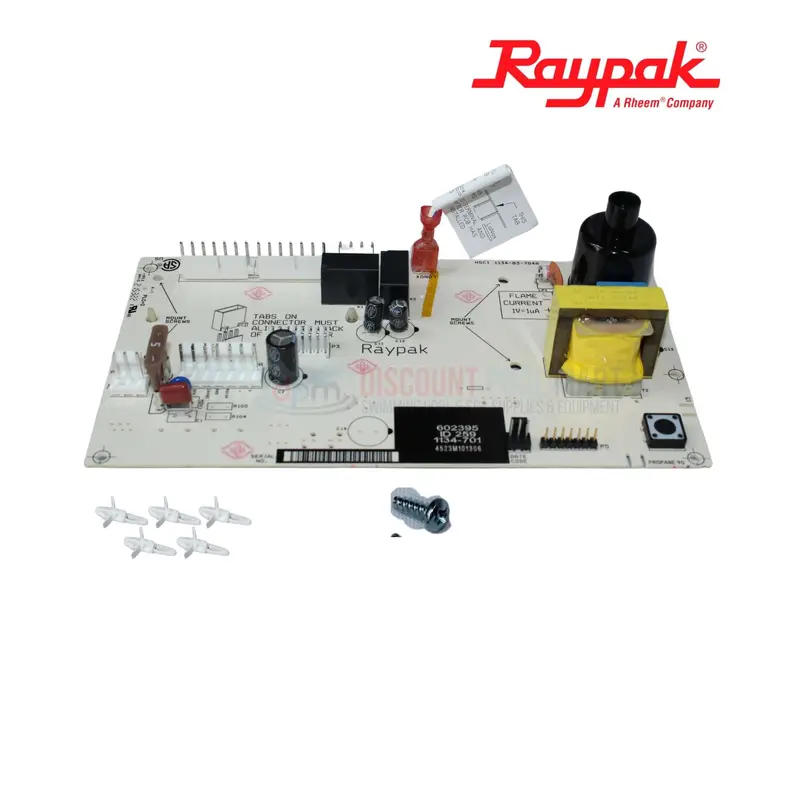

The Raypak 100-10000345 PC Control Board Kit (formerly part number 013464F) is a genuine OEM replacement 3-wire controller designed for Raypak digital gas pool and spa heaters, specifically compatible with 206A, 266A, 336A, 406A, and 408A models built from the mid-2000s onward. This advanced control board restores reliable ignition and operational logic by managing 24-volt power supply, flame sensing, diagnostics, and heater sequencing. Featuring a user-friendly LCD display with clear plain-text diagnostics and enhanced flame signal feedback, it simplifies troubleshooting and maintenance while improving overall heater performance. The kit includes the PC board and necessary harness components to make installation straightforward for technicians and experienced DIY installers.
Highlights
-
OEM Upgrade Replacement: Direct factory-authorized control board kit that replaces the legacy 013464F controller in Raypak digital gas heaters.
-
3-Wire Digital Controller: Manages power supply, flame sensing, and heater logic with a 3-wire configuration for reliable performance.
-
Improved Diagnostics: Features an LCD screen with plain-text messages and diagnostic feedback to simplify troubleshooting and maintenance.
-
Enhanced Flame Sensing: Updated sensing technology improves operational accuracy and reduces unnecessary part replacements.
-
Easy Installation Kit: Includes essential wiring harness and components, making it a complete solution for restoring control functions in compatible Raypak models.
Compatibility
- Raypak Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A, 268, 408
Note: This control board may be compatible with your heater, please check owners manual to ensure compatibility.
Additional Info
The Raypak 100-10000345 PC Control Board Kit is the main digital controller for select Raypak gas heaters, replacing the earlier 013464F board. This section helps Discount Pool Mart customers confirm heater compatibility, understand common control-board failure symptoms, and prepare for replacement before picking up the kit in store. These FAQs focus on diagnostics, wiring considerations, and real-world heater issues seen by walk-in customers.
Compatibility and Heater Matching
Before visiting Discount Pool Mart, customers often want to confirm the correct board for their heater.
Does the Raypak 100-10000345 board fit my 206A or 406A heater?
Yes, this board is compatible with Raypak digital gas heaters including 206A, 266A, 336A, 406A, and 408A models built from the mid-2000s onward. Bringing photos of the heater control area helps verify compatibility.
Is this the correct replacement for the older 013464F board?
Yes, the 100-10000345 kit replaces the earlier 013464F controller and is the current supported version.
Will this board work if my heater powers on but will not ignite?
Often yes. Ignition failures are commonly caused by failing control boards that can no longer manage flame sensing correctly.
Installation and Diagnostic Behavior
These questions address common concerns customers have before replacing the board.
What symptoms usually indicate a failed Raypak control board?
Blank displays, random shutdowns, ignition lockouts, or inconsistent heating cycles are common indicators of board failure.
Does the LCD display help with troubleshooting?
Yes, the plain-text messages make it easier to identify issues like ignition faults or flame-sense problems without guesswork.
Is the wiring difficult to reconnect during installation?
No, the kit includes the necessary harness components and uses a 3-wire configuration designed for straightforward replacement.
In-Store Pickup and Local Guidance
These FAQs help customers prepare before visiting Discount Pool Mart.
Should I bring my old control board to the store?
Yes, many walk-in customers bring the old board to confirm connector layout and model match.
Is this board typically available for local pickup?
It is often stocked, though calling ahead is recommended to ensure availability.
Do customers usually replace other heater parts at the same time?
Yes, sensors, igniters, and pressure switches are commonly inspected or replaced during control board service.
