Pentair Sand Dollar Sd40 Sand Filtration System – Top-Mount Design (Ec-145320)

Description

Pentair Sand Dollar SD40 Top Mount Sand Filter | EC-145320

The Pentair Sand Dollar EC-145320 SD40 Top Mount Sand Filter offers an affordable, durable, and efficient option for small residential pools and spas. With a flow rate of 40 GPM and a filtration area of 1.8 sq. ft., it is designed for pools up to 28,800 gallons. Its one-piece thermoplastic tank is built to resist corrosion, pool chemicals, and harsh outdoor conditions, ensuring long-lasting reliability season after season.

Using #20 silica sand as the filter media, the SD40 provides clear, sparkling water by trapping fine debris between sand particles. The system is equipped with a six-function, 1½” top-mounted multi-port valve that makes operation simple, including filtering, backwashing, rinsing, recirculating, and draining. An integrated pressure gauge and manual air relief valve make monitoring and adjustments easy, while the combination water and sand drain simplifies servicing and winterization. Compact and service-friendly, the SD40 delivers proven Pentair performance in a smaller footprint.

Note: Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the naked eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to “backwash” the filter by simply reversing the water flow and “knocking out” the dirt.

Key Features of the Pentair Sand Dollar SD40 EC-145320 Filter

• 1.8 Sq. Ft. Filtration Area with 40 GPM Flow: Efficient sand filtration capacity sized for small pools and spas while maintaining steady circulation.

• Turnover Capability: Handles up to 19,200 gallons in 8 hours, 24,000 gallons in 10 hours, and 28,800 gallons in 12 hours for dependable performance.

• Durable One-Piece Tank: Thermoplastic body resists corrosion and pool chemicals, providing long-term strength and consistent reliability.

• Six-Function Multi-Port Valve: Easy-to-use top-mounted valve offers multiple functions including filter, backwash, rinse, and drain.

• Efficient Sand Media Filtration: Uses #20 silica sand to capture fine debris, producing clean and clear pool water.

• Simple Backwashing Operation: Multi-port valve allows easy system flushing by reversing flow, restoring filter efficiency quickly.

• Convenient Water and Sand Drain: Built-in drain design simplifies emptying, servicing, and seasonal maintenance tasks.

• Trusted Pentair Quality: Backed by Pentair’s reputation for affordable, durable, and service-friendly pool filtration systems.

Specifications

• Sand Required: 150 pounds of #20 silica sand (sold separately)
• Flow Rate: Maximum flow rate of 40 gallons per minute (GPM)
• Weight: Approximately 30 pounds
• Filtration Area: 1.8 sq. ft.

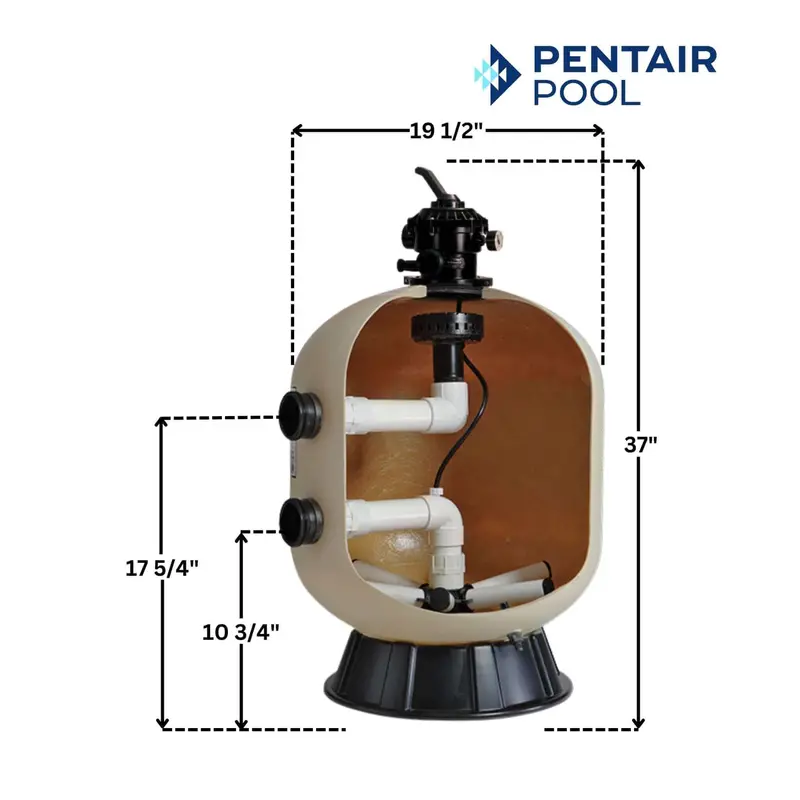

• Dimensions: 19.5″ inches in diameter and 37″ inches in height
• Vertical Clearance: 46″

Includes

• (1) Pentair EC-145320 Sand Dollar Filter
• (1) 6 Function 1.5″ multi-port valve- 262506
• (1) Clamp Assembly- 152165
• (1) Pressure Gauge and manual air relief- 190059

*See manual page 17 for complete list
